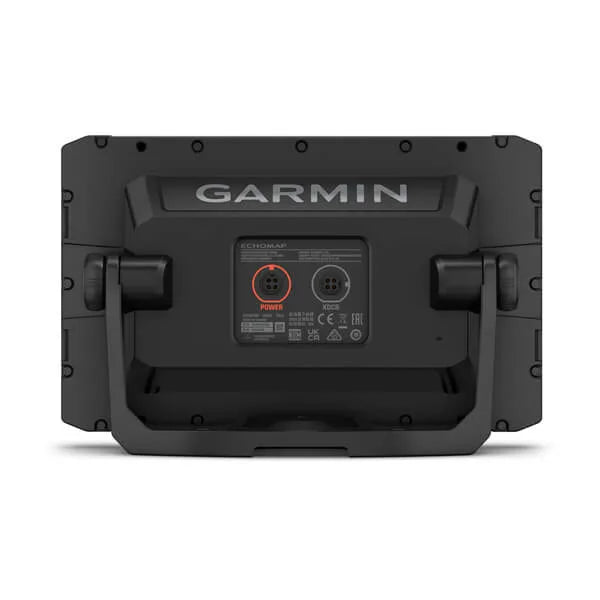

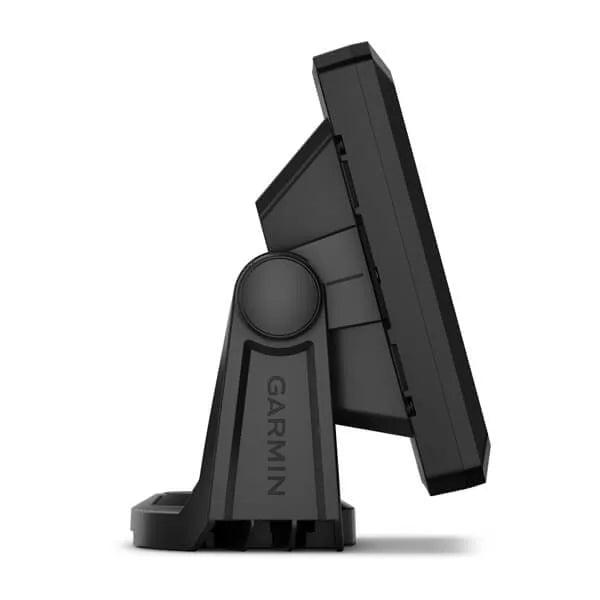

Garmin ECHOMAP™ UHD2 7" Chartplotters 75cv With GT20-TM Transducer
Garmin ECHOMAP™ UHD2 7" Chartplotters 75cv With GT20-TM Transducer
Garmin ECHOMAP™ UHD2 7" Chartplotters 75cv With GT20-TM Transducer
Garmin ECHOMAP™ UHD2 7" Chartplotters 75cv With GT20-TM Transducer
Garmin ECHOMAP™ UHD2 7" Chartplotters 75cv With GT20-TM Transducer
Garmin ECHOMAP™ UHD2 7" Chartplotters 75cv With GT20-TM Transducer

Garmin ECHOMAP™ UHD2 7" Chartplotters 75cv With GT20-TM Transducer

$879.99 Sale Save

Item is in stock Only 1 left in stock Item is out of stock Item is unavailable

WHY TALK TO A LOCAL WHEN YOU CAN FISH LIKE ONE?

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5”and 7” chartplotters with clear, crisp sonar and mapping.


The bright 5” or 7” keyed display is made for convenience.


Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars.


What’s under the water looks even better with high-contrast vivid color palettes.


Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.


Enjoy No. 1 in mapping3 with our LakeVü g3 and BlueChart® maps with Navionics® data.



General

DIMENSION 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
INPUT Keyed
DISPLAY SIZE 6.1" x 3.4" (15.5 x 8.7 cm)
DISPLAY RESOLUTION 800 x 480 pixels
DISPLAY TYPE WVGA, TN
WEIGHT

1.5 lbs (0.7 kg)

WATERPROOF

IPX7

MOUNTING OPTIONS Bail or flush

Maps & Memory

ACCEPTS DATA CARDS

1 microSD™ card; 32 GB maximum size

WAYPOINTS

5,000

TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100

Sensors

HAS BUILT-IN RECEIVER
RECEIVER

5 Hz

GPS
SUPPORTS WAAS

Built-in Maps

BLUECHART (COASTAL) yes (see Additional)
LAKEVU (INLAND) yes (see Additional)
(SOUNDER) TIDE TABLES yes (see Additional)

Optional Map Support

LAKEVÜ G3
LAKEVÜ G3 ULTRA
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
(SOUNDER) TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS

Chartplotter Features

ACTIVECAPTAIN® COMPATIBLE

Sonar Features & Specifications

DISPLAYS SONAR
POWER OUTPUT 500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜ built-in 260/455/800/1000/1200 kHz

Connections

4-PIN TRANSDUCER PORTS 1
GARMIN WI-FI NETWORK (LOCAL CONNECTION)

Electrical Features

POWER INPUT 9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC 1.0 A
MAXIMUM CURRENT DRAW AT 12 VDC 1.5 A
MAXIMUM POWER USAGE AT 10 VDC 18W

Additional

ADDITIONAL
  • BlueChart (coastal): 54cv U.S. BlueChart g3, 55cv U.K./Ireland BlueChart g3, 55cv Australia/New Zealand BlueChart g3, 74cv U.S. BlueChart g3, 75cv UK/Ireland BlueChart g3, 75cv Australia/New Zealand BlueChart g3
  • LakeVü: 55cv U.S. LakeVü g3, 55cv Canada LakeVü g3, 73cv U.S. LakeVü g3, 73cv Canada LakeVü g3
  • Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv



With Transducer

  • ECHOMAP UHD2 (device varies depending on selection)
  • GT20-TM transducer
  • Power/data cable
  • Tilt mount
  • Flush mount
  • Hardware
  • Documentation
